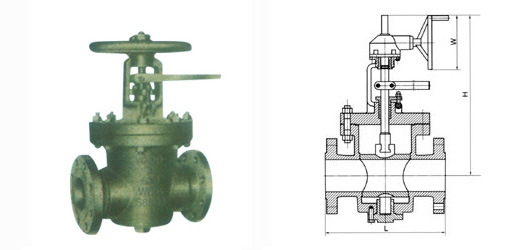

◆Product structural features:
Flange-connection lifting plug valve acc.to ANSI is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum,chemical industry,pharmacy,chemical ferilizer,power industry etc under niminal pressure of CLASS150-1500LBS,and working temperature of -29～550℃

◆Main structural features:
1.The product has reasonable structure,reliable sealing,excellent performance and beautiful appearnce.

2.Opening and closing of the valve is carride out while the sealed surface is taken off, so it will not cause abrasion on the sealed surface.

3.Its characteristic double-direction flow makes installation and use more convenient.

4.The materials of the parts and sizes of flanges can be reasonably configured according the actual operation condition of the requieements of the customersm,so as to meet the various needs of engineering.

◆Principle of opening and closing of the valve
Process of opening and closing of the valve.when opening the valve,first of all,turn the hand wheel to make the plug lifted and separated with the sealed surface,the turn the handle by 90 bdgree to connect the channel of plug to the channel of valve body,so that the valve is opened;when closing the valve,first of all,turn the handle by 90 degree to make the channel of plug vertical to the channel of valve body,and then turn the hand wheel to deescend the plug,so that the valve is closed.

◆Technical specificastion

Structural formation

BB-BG-OS&Y

Driving maner

Handwheel、bevel gear wrench

Design standard

API599、API6D

Face to face

ASME B16.10

Flange ends

ASME B16.5

Test & inspection

API598.API6D

Note:the size of serial valve connecting flange can be designed according to customers'requirement.

◆Products performance specification

Nominal pressure

(MPa)Shell test

(MPa)Sealing test

Suitable temp

Suitable madium

150

3.0

2.2

≤550℃

Water oil & gas

300

7.5

5.5

600

15.0

11.0

900

22.5

16.5

1500

37.5

27.5
